SMARTFOXPro Charger 2
The intelligent wallbox for home – with PV surplus charging, RFID authentication and automatic 1ph/3ph switching. Available in 4 color variants.
11 kW
Max. Charging Power
7 m
Cable Type 2
4
Color Variants
5×
Charger Network
Power to Charge – Everything You Need
Charge intelligently, use PV surplus and manage comfortably – the Pro Charger 2 combines everything in one device.
11 kW Charging Power
Optimal power for all common EVs – no unnecessary over-dimensioning.
1ph/3ph Automatic
Automatic switching between single-phase and three-phase operation for maximum efficiency.
PV Surplus Charging
Charge with solar power only – seamless control from 6 A / 1.4 kW in combination with SMARTFOX.
RFID Authentication
Secure access protection via RFID tag – automated evaluation via the E-Mobility platform.
LAN & WLAN
Flexible network connection – direct integration into the SMARTFOX system or standalone operation.
LCD Display & LED Status
Illuminated display and colored LED status indicator for instant overview of the charging process.
Type 2 Cable (7 m)
High-quality 7 m cable with Type 2 plug – suitable for all common electric vehicles in Europe.
Dynamic Electricity Rates
EPEX-Spot connection: All dynamic rates supported (aWATTar, Tibber and more) – charges automatically at cheapest exchange prices.
E-Mobility Platform
Charging reports, user management, tariff management – all in the My SMARTFOX Portal.
Up to 5 Charging Stations
Up to 5 Pro Charger 2 can be operated on one SMARTFOX Energy Manager – ideal for apartment buildings or small commercial installations.
ISO 15118-20 / Autocharge
Bidirectional communication per ISO 15118-20 – enables automatic autocharge without RFID tag. Hardware-prepared for bidirectional AC charging (V2H / V2G).
Use PV Surplus Sensibly – Instead of Feeding into the Grid
The SMARTFOX Pro Charger 2 works seamlessly with the SMARTFOX Energy Manager and regulates charging power in real-time according to available solar surplus. This way you charge your vehicle 100% with self-produced electricity – automatically, seamlessly and without manual intervention.
Thanks to automatic 1-phase/3-phase switching, efficient charging is possible even with low PV yield – the wallbox intelligently adapts to the available power and avoids unnecessary grid consumption.
Made in Austria – Quality You Can See and Feel
The Pro Charger 2 impresses not only technically but also visually. The impact-resistant polycarbonate housing is available in four exclusive color variants and is certified for indoor and outdoor use (IP54).
The illuminated LCD display and colored LED status indicator provide an instant overview of the charging process at all times – without smartphone or app. The integrated 6 mA DC fault current protection and RFID authentication ensure maximum safety.
Protection Class
IP54
Housing
Polycarbonate
Authentication
RFID
Origin
Made in Austria
Standalone – Without Energy Manager
Read inverter data directly via TCP/Modbus – completely without SMARTFOX Manager or Smart Meter. PV surplus charging directly from the inverter.
* More manufacturers coming soon
* Please clarify exact SW versions of inverters and compatible HW versions with us.

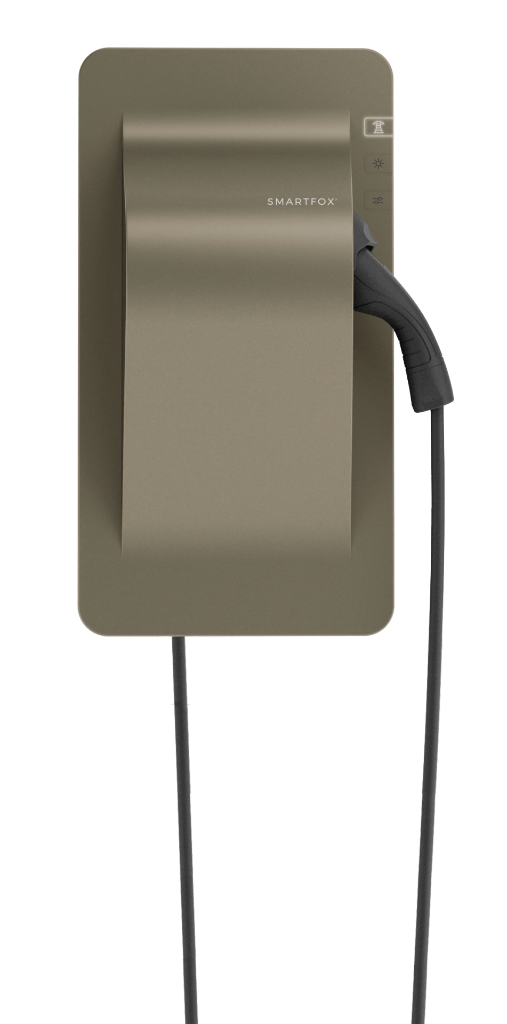

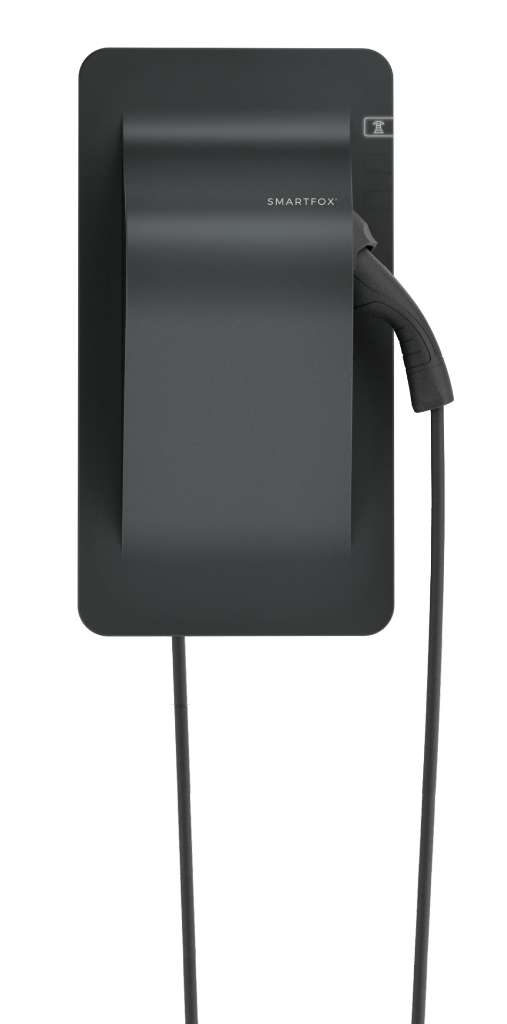

SMARTFOX Pro Charger 2 – Your Choice
Four high-quality color variants – all with identical technology
* Prices are non-binding recommended retail prices (RRP) net excl. VAT. Dealer prices on request.
Pro Charger 2 – Specifications

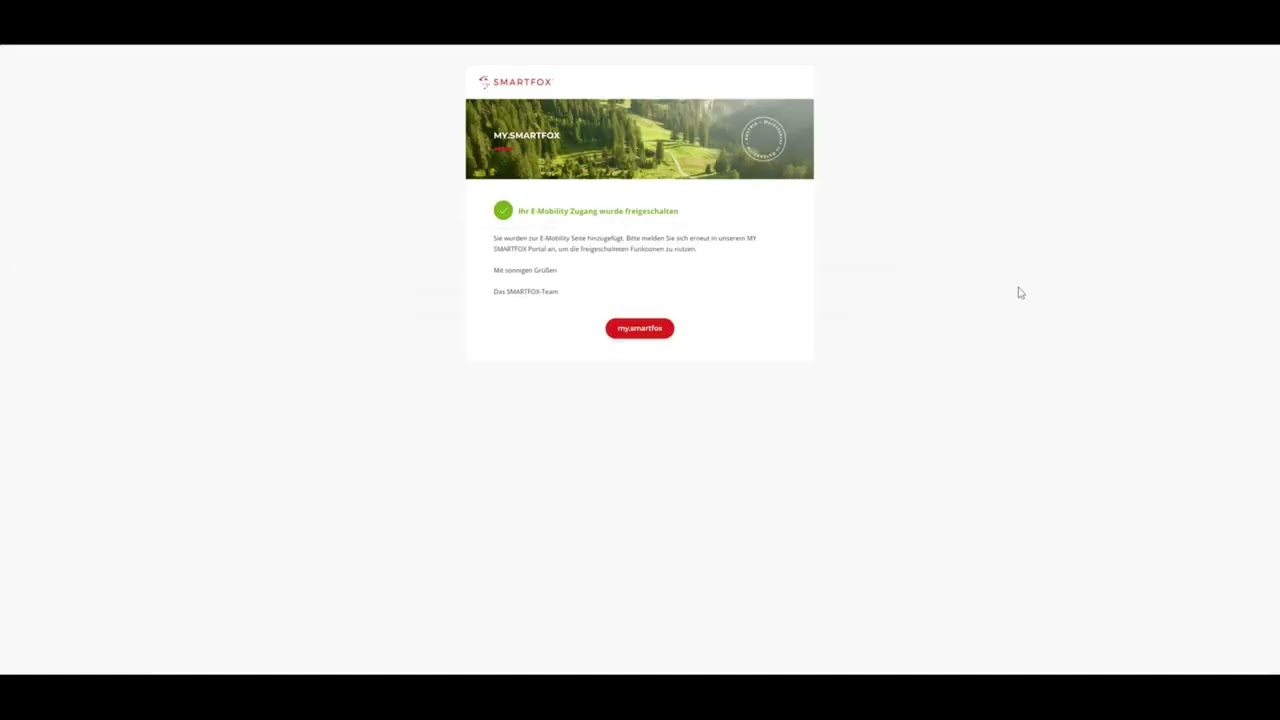

Everything in View – My SMARTFOX Portal
Manage your charging infrastructure, create charging reports and keep track of your energy costs.
Mobility Dashboard
Clear dashboard for all charging processes at a glance.
RFID User Management
Easy management of RFID tags – access protection and automated evaluation.
Up to 5 Charging Stations
Up to 5 Pro Charger 2 per SMARTFOX Energy Manager – manage multiple stations centrally in one portal.
Dynamic Electricity Rates
EPEX-Spot connection (aWATTar, Tibber and more) – automatic charging at cheapest exchange prices.
Detailed Charging Reports
Personalized reports per RFID tag – charging duration, costs, energy amount.
Cloud Integration
Complete remote access via SMARTFOX App and web portal – anytime and anywhere.
FAQ – Pro Charger 2
Was ist der SMARTFOX Pro Charger 2?
Kann der Pro Charger 2 PV-Überschuss laden?
Wie viele Ladestationen können kombiniert werden?
Welche Lademodi unterstützt der Pro Charger 2?
Ist der Pro Charger 2 für den Außenbereich geeignet?
Was kostet der SMARTFOX Pro Charger 2?
Unterstützt der Pro Charger 2 dynamische Stromtarife?
