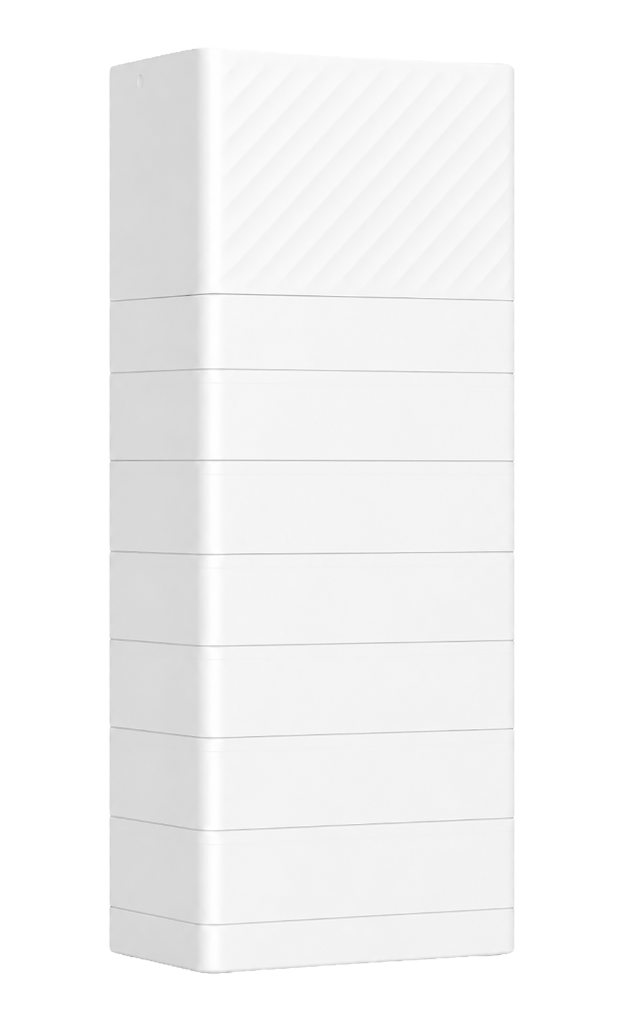

SMARTFOXAIO 15K
The powerful all-in-one storage system for maximum energy independence – three-phase, scalable and future-proof. Up to 29.52 kWh modular LFP storage. Including SMARTFOX PRO 3 Energy Manager as standard.
15 kW
AC Output Power
29.52 kWh
Max. Storage Capacity
97.9 %
Max. Efficiency
IP66
Outdoor Protection
Everything in One System – Scalable & Future-Proof
The SMARTFOX AIO 15kW combines hybrid inverter and modular LFP storage in a compact, outdoor-ready system.
15 kW Three-Phase Hybrid
Maximum power for high consumers – three-phase, modularly expandable
Stackable LFP Battery
9.84 to 29.52 kWh modular storage system (SF5000, up to 6 modules)
63A Continuous Bypass
With 63 A bypass continuous load directly at the house distribution – supplies an entire family home without external or additional emergency power switch
WIFI · LAN
Triple connectivity – local access and cloud monitoring via SMARTFOX Cloud
3 MPPT Tracker
Three independent MPP trackers, 20A each – maximum PV flexibility
RS485 · SG Ready · CAN
Open interfaces for smart home, heat pumps and §14a curtailment
SMARTFOX Cloud Monitoring
AI-powered monitoring, VPP apps and real-time analysis via SMARTFOX App & Web Portal
Dynamic Electricity Rates
EPEX-Spot connection: All dynamic rates supported (aWATTar, Tibber and more) – charges and discharges automatically at cheapest exchange prices
IP66 · AFCI · Surge Type II
Highest protection class for outdoor installation, active arc protection
Modular LFP Storage – from 9.84 to 29.52 kWh
The SF5000 battery system is designed to be stackable – from 2 to 6 modules, capacity grows with demand. LFP chemistry for maximum safety and longevity.
2× SF5000-S
9,84 kWh
116–146 V
570×375×380 mm
97,2 kg
3× SF5000-S
14,76 kWh
174–219 V
570×510×380 mm
140,7 kg
4× SF5000-S
19,68 kWh
232–292 V
570×645×380 mm
184,2 kg
5× SF5000-S
24,60 kWh
290–365 V
570×780×380 mm
227,7 kg
6× SF5000-S
29,52 kWh
348–438 V
570×915×380 mm
271,2 kg
SMARTFOX 15K – All Specifications
SMARTFOX AIO 15K – Complete Sets
Each set contains all components for an immediately operational hybrid storage system:
SMARTFOX AIO SET 15K / 10
- SMARTFOX AIO 15K Hybrid-Wechselrichter
- SF5000-L2 Batteriesystem (9,84 kWh)
- SMARTFOX PRO 3 Energiemanager 3Y
6.099,- €
RRP net, excl. VAT
Request Quote Now
SMARTFOX AIO SET 15K / 15
- SMARTFOX AIO 15K Hybrid-Wechselrichter
- SF5000-L3 Batteriesystem (14,76 kWh)
- SMARTFOX PRO 3 Energiemanager 3Y
7.499,- €
RRP net, excl. VAT
Request Quote Now
SMARTFOX AIO SET 15K / 20
- SMARTFOX AIO 15K Hybrid-Wechselrichter
- SF5000-L4 Batteriesystem (19,68 kWh)
- SMARTFOX PRO 3 Energiemanager 3Y
8.899,- €
RRP net, excl. VAT
Request Quote Now
SMARTFOX AIO SET 15K / 25
- SMARTFOX AIO 15K Hybrid-Wechselrichter
- SF5000-L5 Batteriesystem (24,60 kWh)
- SMARTFOX PRO 3 Energiemanager 3Y
10.299,- €
RRP net, excl. VAT
Request Quote Now
SMARTFOX AIO SET 15K / 30
- SMARTFOX AIO 15K Hybrid-Wechselrichter
- SF5000-L6 Batteriesystem (29,52 kWh)
- SMARTFOX PRO 3 Energiemanager 3Y
11.699,- €
RRP net, excl. VAT
Request Quote Now* Prices are non-binding recommended retail prices (RRP) net excl. VAT. End customer prices may vary.
FAQ – SMARTFOX AIO 15K
Was ist das SMARTFOX AIO 15K?
Wie viel Batteriekapazität ist möglich?
Ist das AIO 15K für Off-Grid geeignet?
Was ist im Lieferumfang des AIO Sets enthalten?
Welche Schutzklasse hat das AIO 15K?
Wie viele PV-Strings unterstützt das AIO 15K?
Unterstützt das AIO 15K dynamische Stromtarife?
SMARTFOX – Intelligently Use Solar Energy
"The SMARTFOX AIO 15kW is more than a storage – it is the heart of your energy independence."
Three-phase, scalable, outdoor-ready – for family homes and commercial installations with the highest demands.
